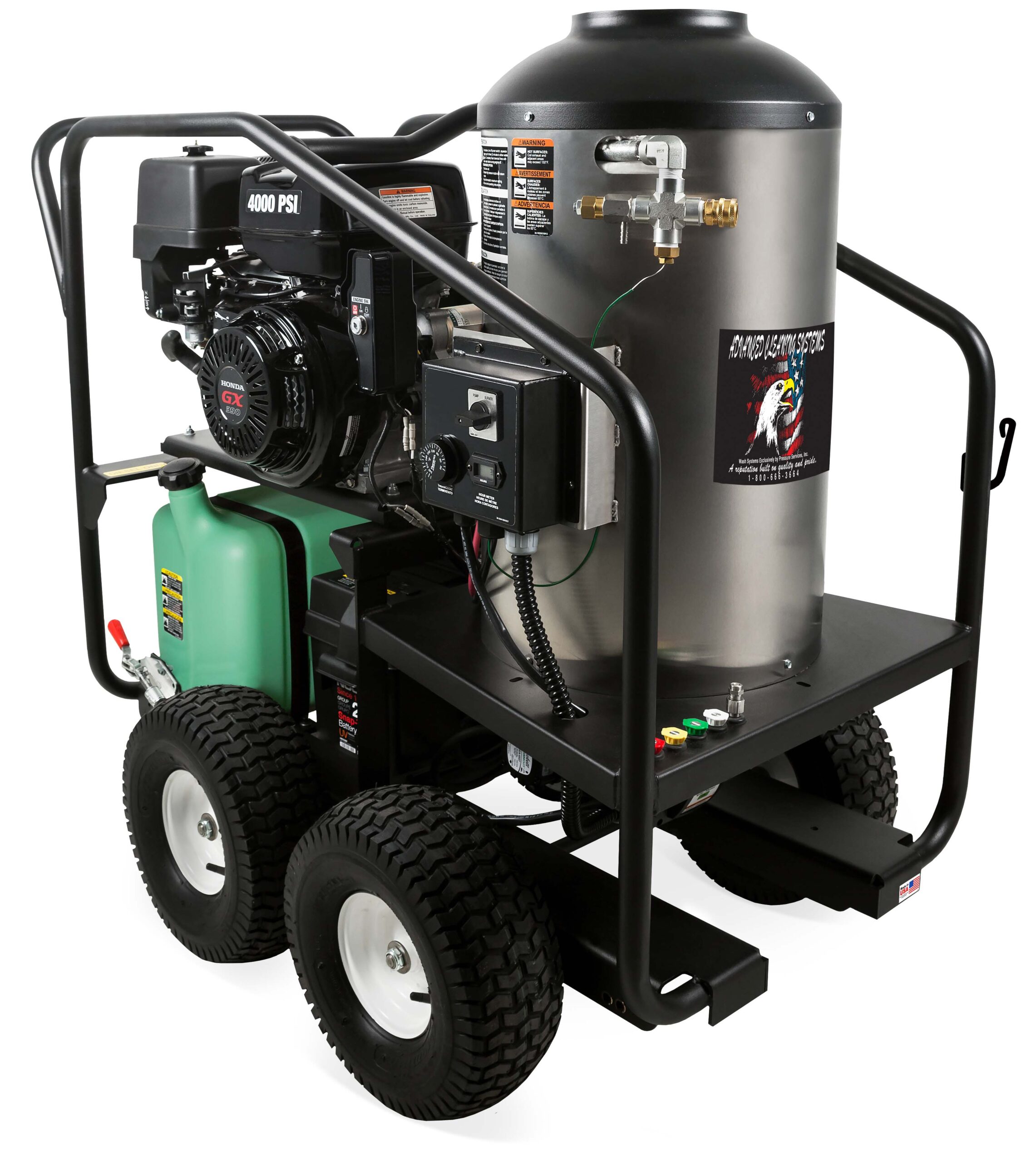

ACS-3740-GHWCHPS

HOT PRESSURE WASHER
GASOLINE DIRECT DRIVE

ACS-3740-GHWCHPS

Literature & Specification Sheets

Powered by the Reliable 389cc
Honda GX390 OHV Engine

4000 PSI @ 3.7 GPM

  • Gas tank Capacity: 1.61 Gallons
  • Burner Fuel Tank Capacity: 10.0 Gallons
  • Dimension: 57.5L x 35.5W x 59.5H
  • Ship WT: 601 Lbs. Net Wt.: 478 Lbs.

The new 12V hot water gas pressure washer may be compact, but it is ready to clean the toughest grime.

Standard Features:

  • Belt drive triplex piston General pump with ceramic plungers / Clutch option included
  • Float Tank with High Pressure Soap Application
  • Powder Coated Frame and Coil Wrap
  • Stainless-steel and brass unloader valve, adjustable
  • Forged brass manifold
  • Thermal relief valve
  • 12V electric start with battery included
  • Reinforced powder coated steel tube frame with center balanced lifting hook
  • 15-inch pneumatic tires
  • Quick connect nozzles: 0°, 15°, 25° and 40°
  • Low Pressure Detergent Injector
  • Quick connect wet steam nozzle – 25°
  • 50-foot x 3/8-inch steel wire-braided high-pressure hose with quick connects, swivel and bend restrictors
  • Adjustable pressure insulated dual lance
  • Profession-grade insulated trigger gun with safety lock-off
  • 1/2-inch schedule 80 pipe coil with 4-pancake bottom fired heat exchanger 12V Beckett burner
  • No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
  • Adjustable thermostat
  • Hour meter
  • 250°F steam
  • Temperature rise 130°F/54°C above ambient, maximum temperature is 210°F
  • Water output temperature is 250°F in “wet” steam
