HHS Series — Belt Drive

Literature & Specification Sheets

Information Flyer

Completely portable, the HHS Series is easy to use and one of the most reliable in the industry. It can easily tackle the toughest cleaning jobs including grease, grime and stubborn stains.

Pump:

  • Belt drive triplex piston AR or General pump with ceramic plungers
  • Adjustable high pressure detergent injector

Motor:

  • Open drip-proof electric motor with manual thermal overload protection
  • 35-foot power cord

Frame

  • Wrinkle-finish powder coated steel frame assembly
  • 13-inch flat-free tires with rear tire brake

Components:

  • Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil
  • No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
  • Auto start/stop
  • Time delay shutdown
  • Hour meter
  • Racor fuel filter/water separator
  • Adjustable thermostat
  • Polyethylene float tank with inlet filter screen
  • 10-gallon polyethylene fuel tank

Miscellaneous:

  • Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes:

  • Quick connect nozzles – 0°, 15°, 25° and 40° and low pressure nozzle
  • 50-foot x 3⁄8-inch high pressure hose
  • Adjustable pressure insulated dual lance
  • Professional-grade insulated trigger gun with safety lock-off

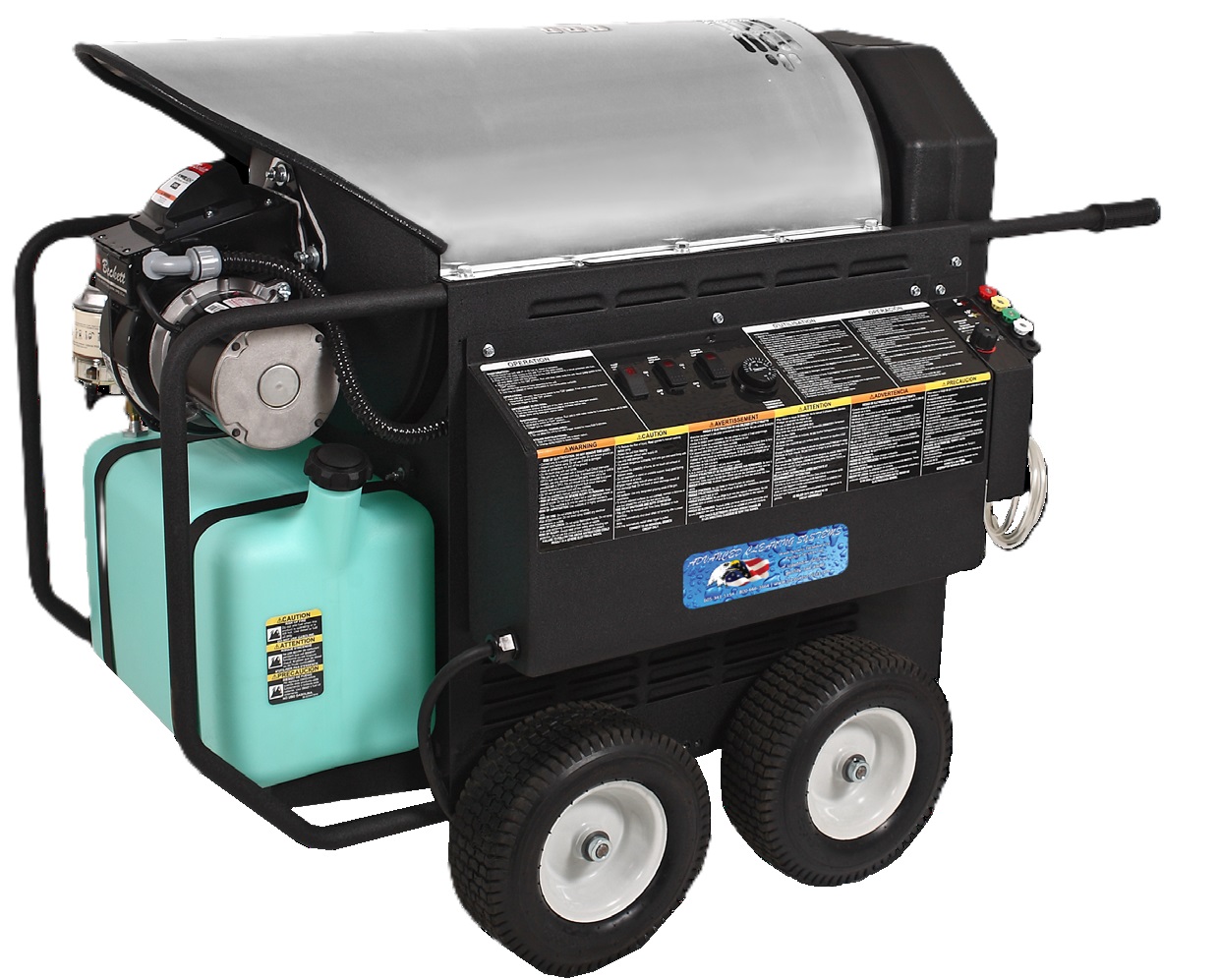

Hot Water – HHS Series – Belt Drive

Portable Electric

MODEL NUMBER ACS-4220-EHWSSTS
PSI 2000
GPM 4.2
HORSEPOWER/MOTOR 6.0 HP, 230V, 1Ø, 28.0A
PUMP General
PLUG TYPE NEMA 6-30P
BURNER FUEL TANK CAPACITY 10.0 gallons
FUEL CONSUMPTION 2.76 gph
BTU per hour 386,400
DIMENSIONS (LxWxH) 57x30x41.5in.
SHIP WT. 670 lb.
NET WT. 550 lb.

Options:

DESCRIPTION FITS MODELS
Stainless-steel bottom wrap – Converts powder coated painted bottom wrap to stainless-steel All models
Skid feet – Stationary applications All models
250ºF steam – Increases outlet temperature to 250ºF
250ºF steam – Increases outlet temperature to 250ºF 1000 & 2000-PSI models
250ºF steam – Increases outlet temperature to 250ºF
Skid frame/roll cage design – Stationary applications All models
Wireless remote – EZ-quip install All models
K7 unloader, flow activated (auto start/stop N/A) – Converts pressure trapping unloader system to flow actuated K7 unloader
K7 unloader, flow activated (auto start/stop N/A) – Converts pressure trapping unloader system to flow actuated K7 unloader

Accessories:

DESCRIPTION FITS MODELS
Stack adapter – Allows 8-inch flue pipe to be installed to boiler exhaust port All models
Gasket (for stack adapter) – Seals between stack adapter and boiler housing All models
